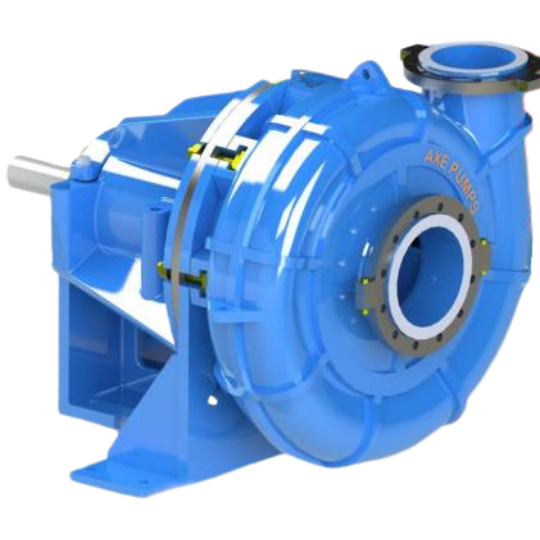

HD-M Series pumps
- 7 models: HD50M, HD75M, HD100M, HD150M, HD200M, HD250M, HD300M
- Maximum flow capacity to 2,800 m³/h
- Heads up to 85 m
- Wear components: high chrome
Titan Pumps manufactures and supplies a comprehensive range of industrial-grade pumps specifically designed for mining and heavy industrial applications. Every pump we offer is selected or built to deliver reliable performance in the toughest operating environments.

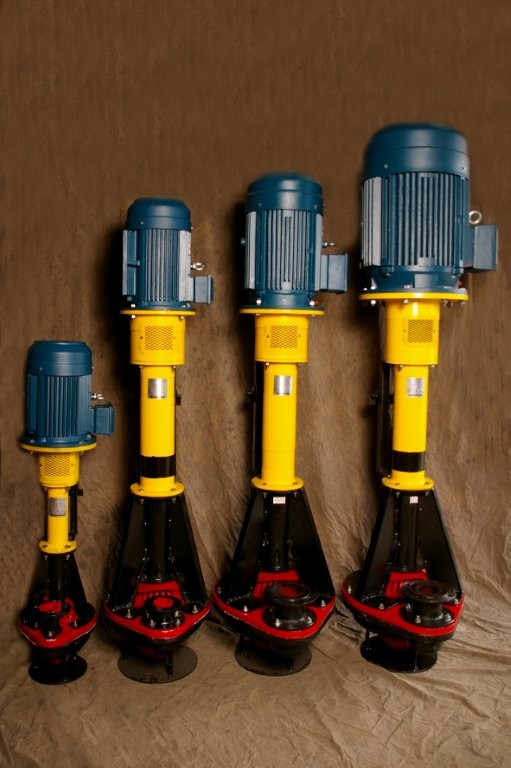

Titan Vertical Spindle Pumps
Water & Slurry Management
- 5 models: 40mm, 50mm, 65mm, 100mm, 125mm — all available in std grease or Oil Bath sealing arrangement
- 9 performance variations: 4-pole for standard applications and 2-pole for high-head applications
- Sump depth: 510mm to 1800mm — extended shaft or extended by tail/suction pipe
- Discharge diameter 2" to 6"
- Dual-vaned impellers — diameter 180 OD to 343 OD
- Spares are interchangeable between models: 40mm/50mm and 65mm/100mm
- Solids handling up to 19mm and an SG of 1.4
- Can run dry indefinitely
- Grease bearings are sealed / Oil bath bearings are sealed
- Bearing housings (complete) available off the shelf for quick turnaround on site repairs
- We manufacture sumps designed for compatibility with all types of vertical spindle pumps, ensuring reliable performance across a wide range of applications
Slurry Pumps
Centrifugal heavy duty · Abrasive applications

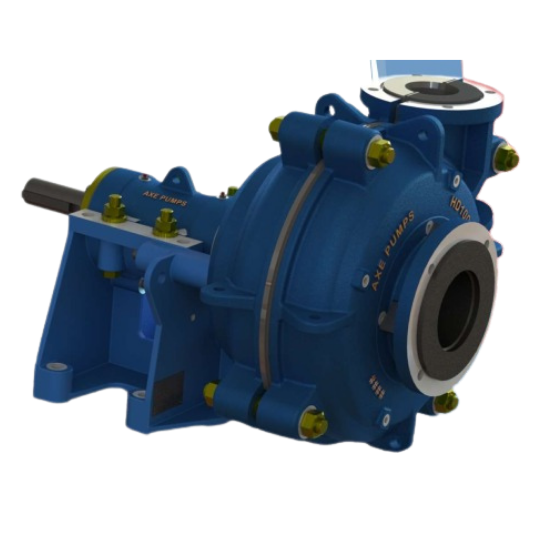

HD Series pumps
- 11 models: HD25, HD32, HD50, HD80, HD100, HD150, HD200, HD300, HD350, HD450
- Maximum flow capacity to 5,400 m³/h
- Heads to 68 m
- Wear components: high chrome, rubber, or polyurethane

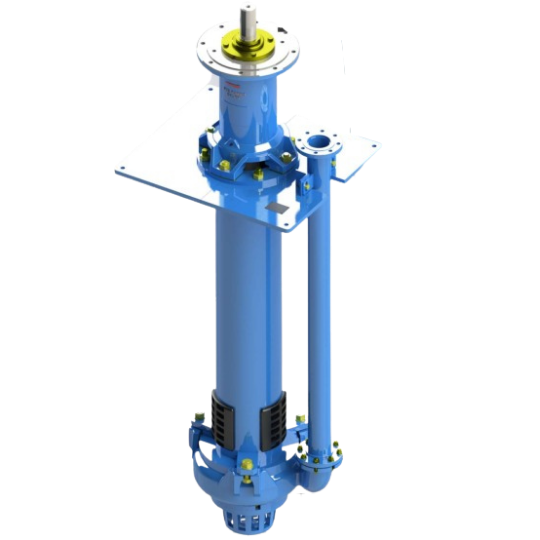

SP Series vertical spindle pumps
- 5 models: SP040, SP065, SP100, SP150, SP200
- Maximum flow capacity to 282 m³/h
- Heads to 40 m
- Wear components: high chrome, rubber, or polyurethane

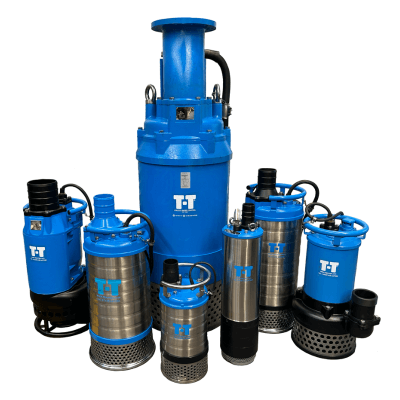

Submersible Pumps

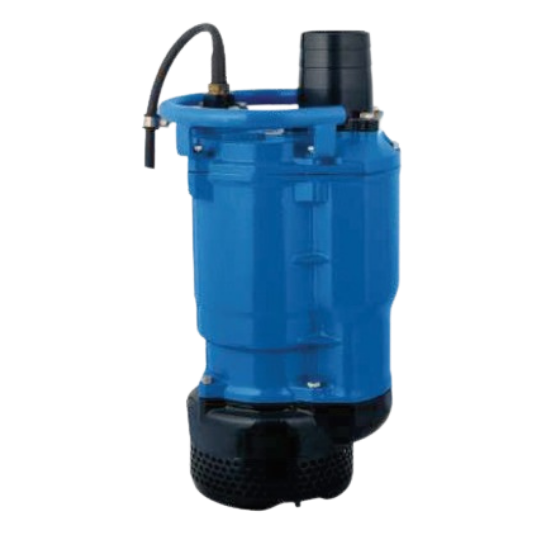

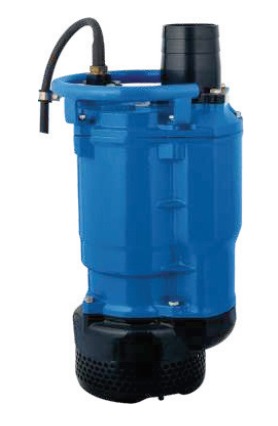

Reliable dewatering pumps · KBZ Dewatering Submersible
- 15 models available
- Maximum flow capacity to 156 m³/h
- Heads to 56 m
- Motor range from 1.5 kW to 15 kW
- Discharge from 2" (50 mm) to 6" (150 mm)
- Top outlet
- High chrome impeller

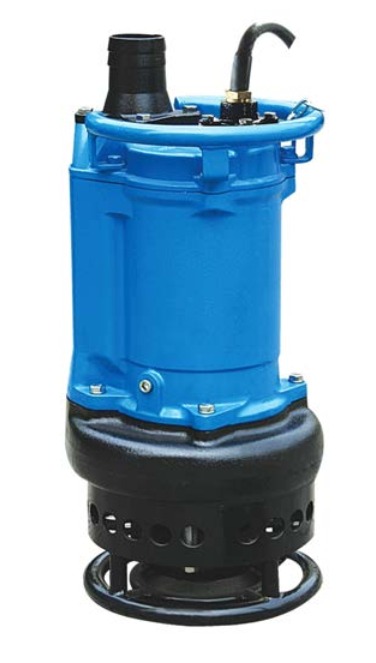

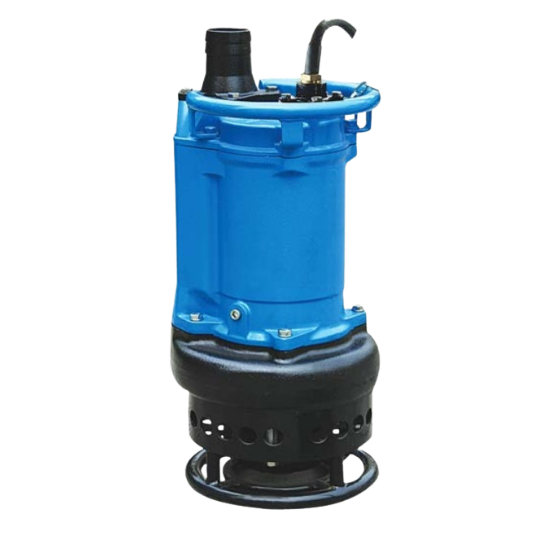

KBS Slurry Submersible
Slurry submersible
- 8 models available
- Maximum flow capacity to 390 m³/h
- Heads to 42 m
- Discharge from 3" (80 mm) to 8" (200 mm)
- High chrome impeller

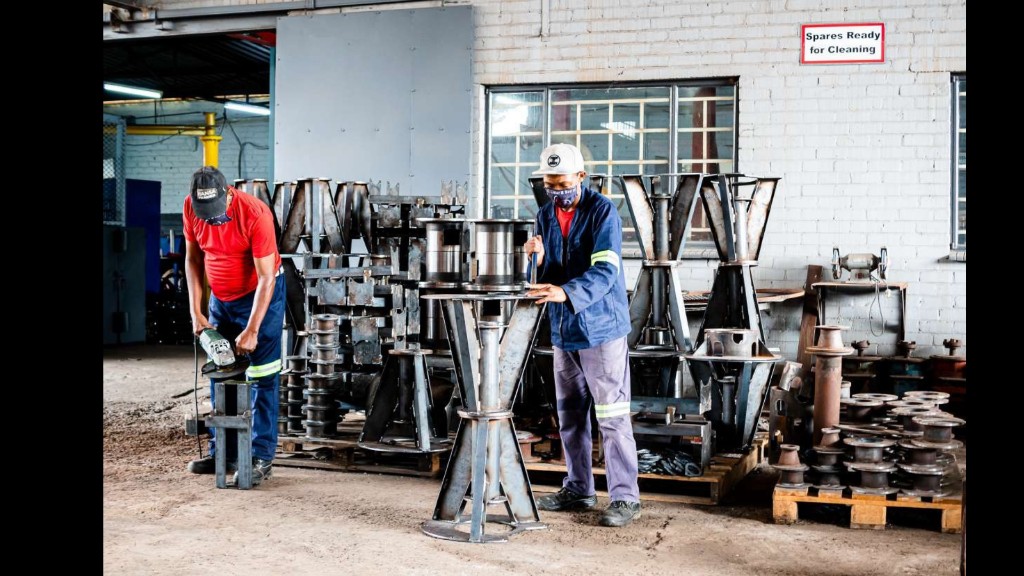

Custom Solutions
Don’t see what you need? Titan Pumps specializes in custom pumping solutions. If your operation has unique requirements, we can design, manufacture or purchase pumps tailored to your specific application.
Request a Custom SolutionGeneral Engineering Services
In addition to our comprehensive range of pumps, our company provides a variety of general engineering services to meet your operational needs.
- Plate Cutting and Bending – We offer precise plate cutting and bending services tailored to your specifications.
- Plasma, Laser, or Flame Cutting – Our facility offers high-quality plasma, laser, or flame cutting for various materials.

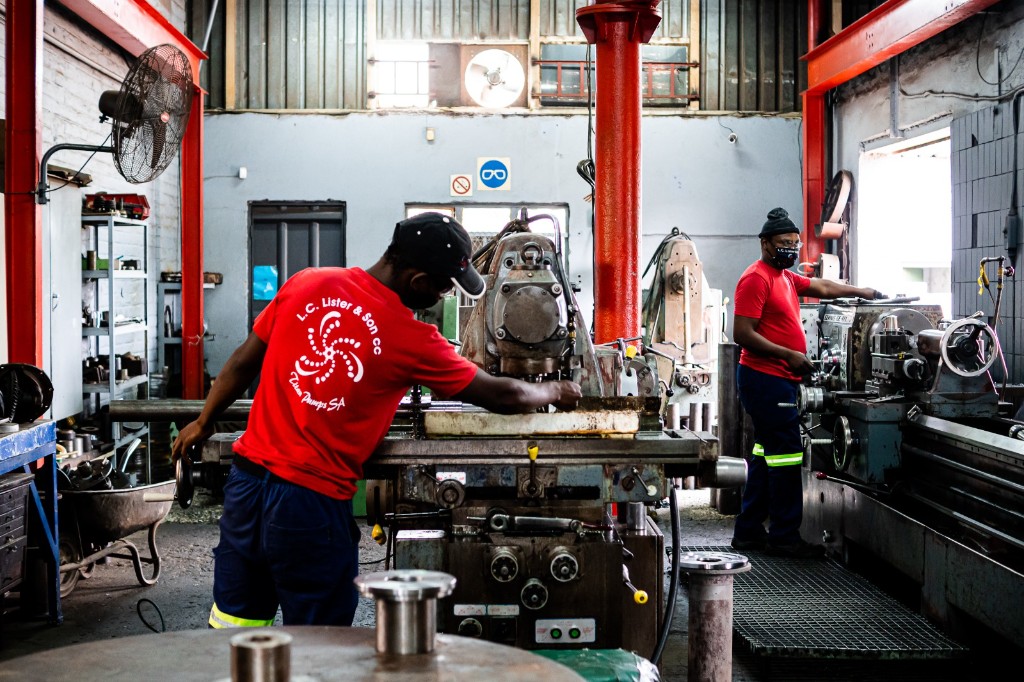

- Fully Equipped Machine Shop – Our machine shop includes CNC lathes, manual lathes, and milling machines, allowing us to handle a wide range of machining tasks efficiently.
Technical Specifications Available
For detailed technical specifications, performance curves, materials of construction, and sizing assistance, contact our technical team. We will help you select the right pump for your application.
Request Technical InformationAll Products Include
✓ Quality manufacturing and components ✓ Installation support and commissioning ✓ O&M documentation ✓ Spare parts availability ✓ Technical support and service
